CIMR-VU2A0010FAA Yaskawa (NEMA 1)



CIMR-VU2A0010BAA Yaskawa (IP20)

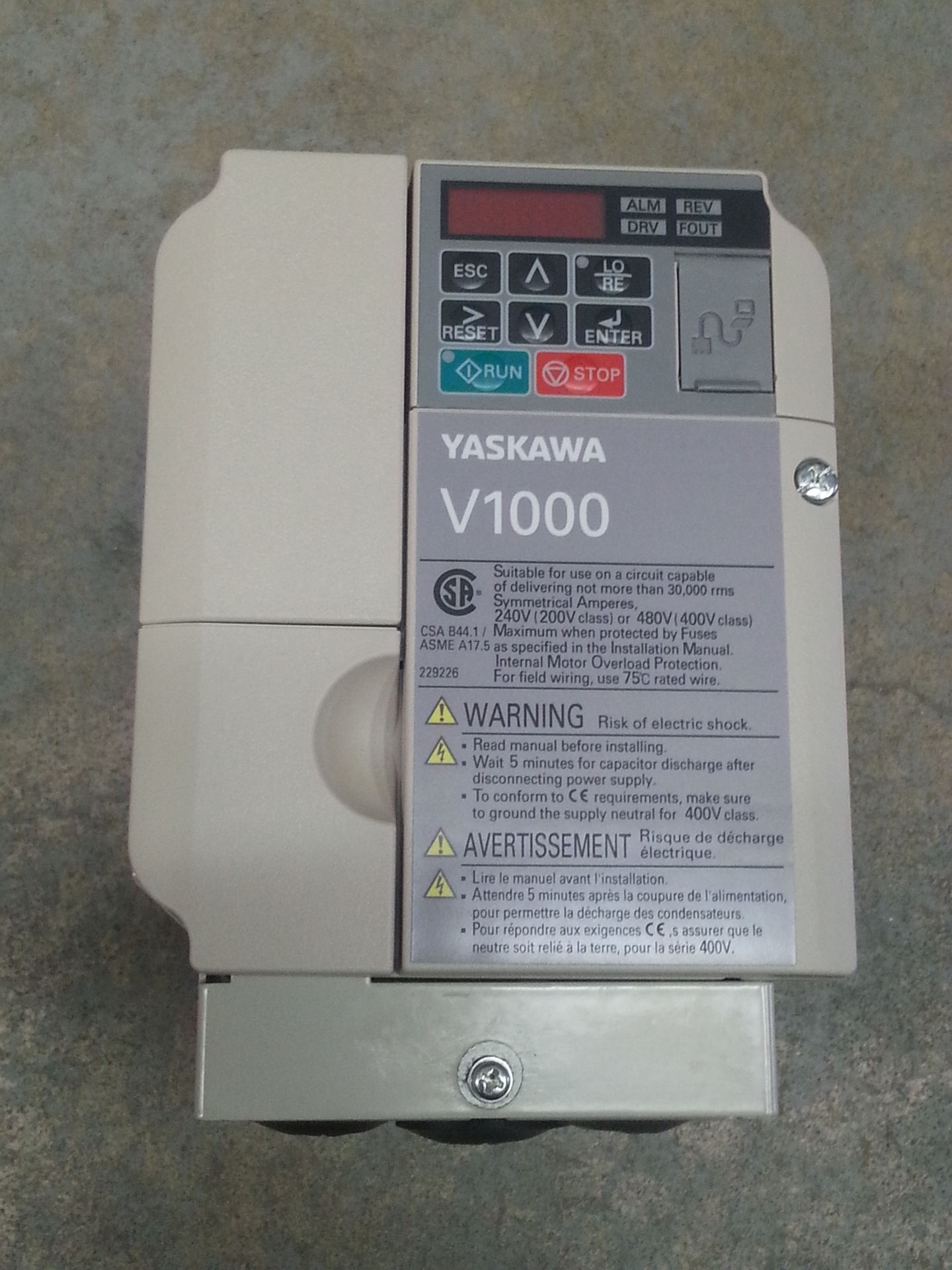

2 HP , Serial V1000

The V1000 is a world-class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa pays off the promise of being in control with products that make businesses move. The optimum balance of energy input, product output, maintenance risk, and long life is reached with Yaskawa. The V1000 provides a world of power in the palm of your hand!



---

 Error codes









GF

Fault name : Ground Fault

• Current shorted to ground esceeded 50% of rated current on output side of the drive.

• Setting L8-09 to 1 enables ground fault detection in models 2A0020 to 2A0069 and 4A0011 to 4A0038.

Cause : Motor insulation is damaged

Possible solution : Check the insulation resistance of the motor.

                                   Replace the motor.

LF

Fault name : Output Phase Loss

• Phase loss on the output side of the drive.

• Phase loss detection is enabled when L8-07 is set to 1 or 2.

Cause1 : The output cable is disconnected

Possible solution : Check for wiring errors and ensure the output cable is connected properly.

                                  Correct the wiring.

Cause2 : The motor winding is damaged.

Possible solution : Check the resistance between motor lines.

                                  Replace the motor if the winding is damaged.

Cause3 : The output terminal is loose.

Possible solution: Apply the tightening torque specified in the manual to fasten the terminals. Refer to Wire Size and Torque Specifications on page 66.

Cause4 : The motor being used in less than 5% of the drive rated current.

Possible solution : Check the drive and motor capacities.

Cause5 : An output transistor is damaged.

Possible solution : Replace the drive.

Cause6 : A single-phase moto ris being used.

Possible solution : The drive being used cannot operate a single phase motor.

rr

Fault name : Dynamic Braking Transistor

                       The built-in dynamic braking transistor failed.

Cause1 : The braking transistor is damaged.

Possible solution : Cycle power to the drive and check if the fault reoccurs. Refer to Diagnosing and Resetting Faults on page 298.

                                  Replace the drive if the fault continues.

Cause2 : The control circuit is damaged.

Possible solution : Cycle power to the drive and check if the fault reoccurs. Refer to Diagnosing and Resetting Faults on page 298.

                                  Replace the drive if the fault continues.
